Making the Testing of Breakdown Voltage Easy
Oil Breakdown Down Voltage testing kit -BDV Test Kit
Transformer oil has insulating properties that are stable at high voltage. We can use the oil in the oil-filled electric transformers for insulation, dissipating heat, and stopping the corona discharge. The oil bdv test kit will push you to measure the breakdown voltage of any type of transformer oil. You will easily be able to know at what voltage the breakdown occurs in the oil. Therefore, you will identify if the oil is eligible or not to pour in the transformer. we can make the decision that if there is any requirement of filtration of that tested sample using the bdv test kit.
Call Now: +91 94774-23085
View More
PRODUCT GALLERY
Keeps you Away from Overloads

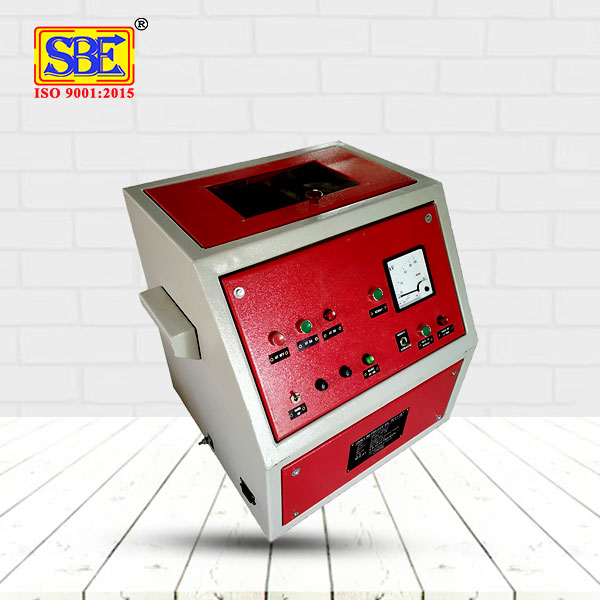

The sets are popular because of their portability and useful in transformer manufacturing industries, transformer oil manufacturing units as well as filtration of oil plants. The compact Oil BDV Test Set consists of H.V. TRANSFORMER which is resin casted and a suitable CONTROL CIRCUITORY in a single unit. Both H.V. transformer and Control Circuitry are enclosed in a powder coated sturdy steel cabinet.
The CONTROL SECTION consists of fuse, push buttons, Indicating lamps and switches, one panel mounting type 96 sq. mm. voltmeter to measure output voltage which is connected to L.T. side and calibrated against output voltage in KV, a motorized variable Auto Transformer to vary the output voltage of suitable capacity. The double wound resin casted ‘H.V. Step-up transformer ‘is centre tapped and grounded with body of cabinet.
Out of these, the indicating lamps, Analog meter, operating switch, a memory push to check breakdown voltage even after H.T. circuit is tripped OFF, and all these are fitted on right side of top panel. All nomenclatures are engraved in anodized Aluminum plates which are placed on the powder coated sturdy steel cabinet. The transparent acrylic sheet on the hinged top cover at the left side is provided to observe the dielectric breakdown of the transformer oil under test . The gap of 2.5 mm between the spherical electrodes of diameter 12.5 mm to 13 mm is adjusted with the help of a gauge which is to be provided along with the oil pot.
View More
MODELS Of Oil BDV TEST SET
- 2 % Accuracy.
- Up-to 120 KV Output Voltage.
- Moving Coil A.C Rectifier type Volt Meter.
- Good Locking, Sturdy Cabinet.
- Compact and rugged.
- Quick and Easy to operate.
- Excellent Weight/ Performance Ratio.
- This Test Set to measure Breakdown Voltage of any kind of Transformer oil.
- Capable to test upto 80/100/120 KV.
- Available in Motorized cum Manual Mode.
- Moving coil AC Rectifier type voltmeter.
- Variable Test Voltage Setting Knob.
- ‘MEMORY’ Push Button to observe the Breakdown Voltage.
- ‘MAINS ON’ Indication.
- ‘VARIAC NOT AT ZERO’ Indication.
- ‘HT ON’ Indication
- Overload Protection.
- Short Circuit Protection.
- Door Interlock Protection.
- ‘Zero Start Interlock’ Protection.
| Model | SBE – OBTS – 80 | SBE – OBTS – 100 | SBE – OBTS – 120 |
| CAPACITY | 80 KV | 100 KV | 120 KV |
| VOLTAGE RANGE | 0 – 80 KV | 0 – 100 KV | 0 – 120 KV |
| INPUT SUPPLY VOLTAGE | 230 VOLT, ± 10%, Single Phase, 50 Hz, AC. | ||
| CAPACITY | 800 VA | 1000 VA | 1200 VA |
| OPERATING TEMPERATURE | 0 ° C – 55 ° C | ||
| DISPLAY | Analog / Digital as per Customer Requirement. | ||
| METER ACCURACY | ± 2% of reading. | ||
| RATE OF RISE | 2 KV / Seconds. | ||
| COOLING | Resin Cast, Air Natural Cooled. | ||
| BREAKDOWN | 1 Minute Withstand or Momentary Automatic Breakdown. | ||
| OPERATION | Manual / Motorized cum Manual. | ||
| PROTECTION | Overload Protection, Zero Start Interlock, Door Interlock. | ||
| TEST SET STANDARD | IS 6792 | ||
| DIMENSION (APPROX.) | 500 mm (L) X 475 mm (B) X 525 mm (W) | ||
