Finding the Cable Defects
Test the Cable Distance with Ease
Neither it’s easy to make a web of underground cables nor it’s simple to maintain it. Being an contractor, it’s constantly challenging to find faults in the cables, especially when the cables are not working properly. Finding the defects in the cables is crucial because it can lead to dangerous results that could lead to heavy loss of electrical equipment as short circuits and blasts can happen. So, cable fault locator Manufacturers in India have developed the top product that can help you detect the distance to ensure the safety of the cable. The product can get you great accuracy of the cable and can measure up to 30km of distance regarding the electrical supply.
Download Catalogue
View More
PRODUCT GALLERY
High-value Accuracy Measurement
The cable fault pre-locator will calculate almost exact distance in which the fault is located. Be with us, the cable fault locator suppliers in India, S.B.Electrotech.
Know More

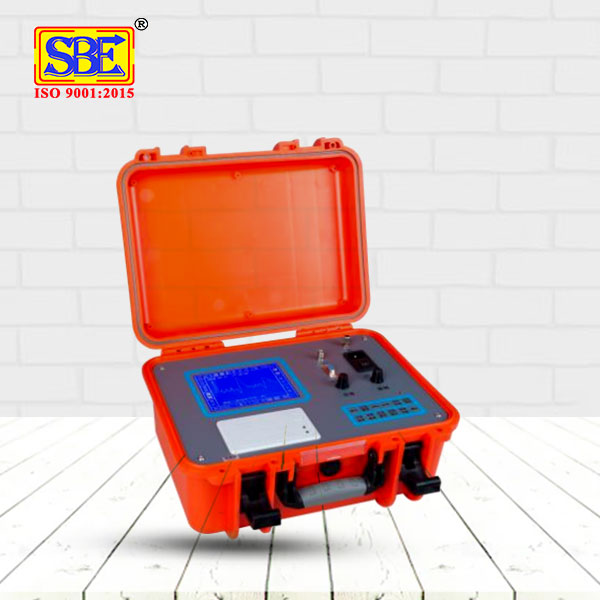

CABLE FAULT PRE LOCATOR
- It can Test Distance, Speed and Resistance of the Cable.
- With Micro – Printer, print out the Wave form and measuring results.
- Fully Automatic Continuous Sampling, never misses any discharge web form.
- Test Method : Flash-over method, Low pressure pulse method, multiple waveform analysis method.
- Weight : 4.4 KG
- Resolution : 0.5 m
- Data Storage : 10 Set.
- Relative Humidity : 90%
- Pulse width : 0.1µS-2µS
- Dynamic Range : >75db
- Output Impedance :50 OHM
- Pulse Amplitude : 100 V p-p
- DC 24 V / 7 AH, CONT. For 6 Hours.
- Measuring Distance : 15 KM – 30 KM
- Power Supply : AC 220 V, +/- 10%, 50 Hz
- Sampling and Impulse Current Method.
- Accuracy of distance measurement : +/-1%
- Dimension : 350 mm X 280 mm X 170 mm
- Working Condition : Temp. : -10 deg. C – + 45 deg.
- Measuring method : TDR Measurement method, Flash-over
Know More
HIGH VOLTAGE SURGE GENERATOR
- With Over current, over voltage, over heat automatic protection.
- The impact discharge is uniform, and the discharge speed can be controlled.
- Short Circuit Protection function, can make the high voltage output directly to the ground.
- This device integrates DC-High Voltage Source, energy storage capacitor, discharge ball gap equal to one.
- Surge Energy : 1225 J
- Impact Time : 1 – 10 Sec.
- Impact Power : 400 Watt
- Built in Capacitor : 4 µF
- Discharge Power : 2540 J
- Weight : Less than 35 KG.
- Impact high Voltage : 0 – 35 KV
- Dimension : 420 L X 325 W X 480 H
- Over temperature protection : 85 deg. C
- Ambient Temperature : -20 deg. C to +50 deg. C
- Working Power : AC 220 V, +/- 10%, 50 Hz, +/-2 Hz.
- High Voltage Partial Pressure : Voltage Accuracy = 1.5
Know More
PIN POINTER
- Can synchronously receive sound and Electromagnetic wave, when fault point discharges.
- Structure Feature : receiver and probe separated. arm grade anti noise ear phone.
- The Probe is made of special technology with professional sound collector.
- Portable and easy to use. Fast and accurate to find cable fault.
- Positioning accuracy : +/-0.02
- Working Voltage : DC 9 V Battery.
- Receiving Frequency : Audio Frequency.
- Power Operating temperature : – 10 deg. C – 55 deg. C.
- Receiving Mode : Magnetic Sound Synchronization.
- Magnification : 50,000 times output impedance : 350 OHM.
- Power Dissipation : Quiescent current is less than 10 mA. The working current not more than 10 mA.
Know More
CABLE ROUTE TRACE
- Cable Route Tracer is specially designed for detecting the underground cable Layout position and underground depth in a certain range.
- Cable Route Tracer consist of Signal transmitter and receiver (Cable Fault pinpoint Tester), both of which finish the detection. By united operation the cable route detector could exactly pinpoint the cable route in the probable range of cable burial.
- Output Power : 100 W
- Output Current : 0 – 2 A
- Output Frequency : Audio Frequency.
- Output Signal : Intermittent , 0-50 V pp
- Power Supply : 220 V (1+/-10%), 50 Hz (1+/-5%)
- Receiving mode : Electromagnetic Induction
