DC Hipot Tester
Comes with the Zero Start Interlock Facility
The feature of the DC hipot tester is a convenient one that lets you stay safe from the defects that can happen in a system. The interlock installed inside the tester will keep you safe from any accident. The dc hipot test kit runs with a safety fence that acts like a defensive layer for causing any harm to any person by ensuring this that it will not started injecting high voltage till we are not bring the variable knob to zero position. Apart from the interlock, the dc hipot testers are equipped with relay protection, HRC Fuse Protection, Short Circuit Protection, and Over Current Protection.
Download Catalogue
View More

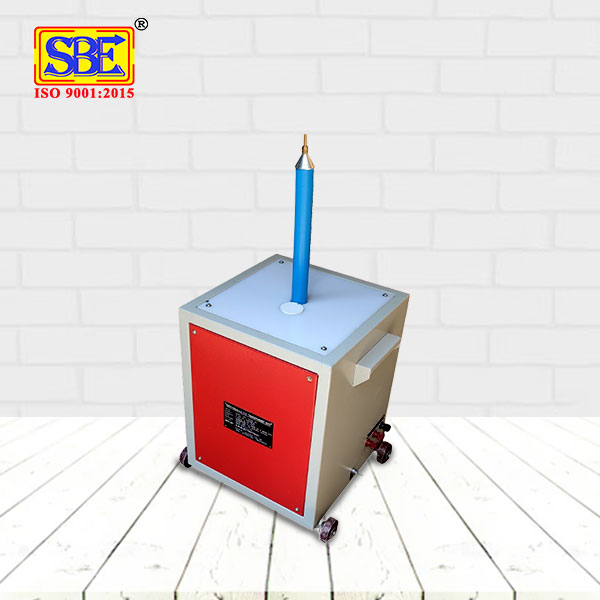

PRODUCT GALLERY
High Voltage ‘ON’ Indication
We, the dc hipot tester manufacturer ensures that the product comes with a high voltage indicator that lets you know that there is High Voltage in the system and also you can see the maximum voltage going uphill in the digital display so you can stop it immediately till it reaches the maximum set potential.
This will let you know what voltage you have applied. Try us, the dc hipot tester suppliers, today to create wonderful electrical & electronic products.
| MODEL | SBE – DCHV 30 | SBE – DCHV 40 | SBE – DCHV 50 | SBE – DCHV 60 | SBE – DCHV 70 | SBE – DCHV 80 |
| OUTPUT VOLTAGE | 30 KV | 40 KV | 50 KV | 60 KV | 70 KV | 80 KV |
| TRIPPING CURRENT FOR DC | 10 mA, 20 mA, 30 mA, 40 mA, 50mA,100mA | |||||
| VOLTAGE ACCURACY | ± 2 % OF READING | |||||
| VOLTAGE REGULATION | 1 KV | |||||
| CURRENT ACCURACY | ± 2 % OF READING | |||||
| CURRENT RESOLUTION | 1 mA | |||||
| MAINS SUPPLY | 230 V, SINGLE PHASE / 400 V, TWO PHASE,50 Hz, AC | |||||
| DUTY | INTERMITTENT ( 5 MINUTES ON, 10 MINUTES OFF) | |||||
| TIMER | 0 – 999 SEC | |||||
| TIMER ACCURACY | ± 0.05 % | |||||
| OPERATION | MANUAL / MOTORIZED | |||||
| COOLING | AIR NATURAL COOLED | |||||
| INDICATION | INDICATION FOR MAINS ON & HT ON | |||||
| PROTECTION | ZERO START INTERLOCK, EARTH INTERLOCK, M.C.B PROTECTION, HRC FUSE PROTECTION, RELAY PROTECTION, OVERLOAD TRIPPING ARZANGEMENT, | |||||
| Units | 3 UNITS (CONTROL UNIT, HV TRANSFORMER, RECTIFIER UNIT) | |||||
| OPERATING TEMP. | 0 ° C TO 55°C | |||||
| HUMIDITY | 5 – 90 % | |||||
- Easy to Operate
- Relay Protection
- HRC Fuse Protection
- Over Current Protection
- Zero Start Interlock Facility
- Short Circuit Protection
- High Voltage ‘ON’ Indication
- Capable to test up-to 180 KV DC
- Available in Manual / Motorized Mode
- KV Meter for High Voltage Measurement
- mA Meter for leakage current measurement
- Timer for testing Time Setting(Optional)
- Selector switch for leakage current Setting
- Variable Test Voltage Setting Knob
- Electrical Testing Laboratories
- Transformer Manufacturing and Repair Industries
- Motor Manufacturing and Repair Industries
- Generator Manufacturing and Repair Industries
- Pump Manufacturing and Repair Industries
- Cable Manufacturing and Repair Industries
- Engineering, Polytechnic and other Institutes
- Insulating Items Manufacturing Industries
- Meters, Switches, Indicating Lamps, Push Button, Fuses etc. are fitted on the TOP of Control Panel Box.
- One Single Phase Copper double wound H.V Step up Graded Insulation is mounted in the Second unit
- HV DIODE, HV CAPACITOR, HV MEASURING RESISTANCE CHAIN IS PROVIDED AS SEPARATE UNIT.
- Contactor, Protection CT , wiring, One continuously variable Auto Transformer to vary the output voltage of suitable capacity are
mounted inside the control box.
- Discharge Rod.
- Operating Manual.
- Works Test Report.
- Warranty Certificate.
- 5 Meters Input Mains Power Cord.
- 5 Meter Interconnecting Cable for Testing Panel and DC Rectifier Unit.
- 5 Meter Interconnecting Cable for Testing Panel and High Voltage Transformer.
- Spare : 2 Nos. Fuses, 2 Nos. Push Button, 2 Nos. Indication Lamps, 1 No. Micro Switch, 2 Nos. Battery Terminals.
