Measuring Accurate Voltage
Higher Accuracy in Voltage Measurements
The device will serve you better when you wish to get the desired accuracy that’s better than 2%. The machine is made with a KV meter that has high accuracy rates up to the limit of 150 KV. The digital high voltage tester will let you understand the insulation quality of any object. You can identify the sum of leakage current in your newly built device and how it’s reacting to the High Voltage. We,the high voltage tester suppliers in India have produced a high-end product that will not let you experience device destruction as your production quality will increase.
Call Now: +91 94774-23085
View More
PRODUCT GALLERY
Protective Relay for Circuit Protection
The ac high voltage breakdown tester will have the feature that’s outstanding for the ones who are into repairing and manufacturing works. The relay senses the abnormal situation happening inside the circuit and closes the contacts to avoid any kind of damage in the High Voltage Tester. As we are the high voltage tester manufacturers in India , we want you to experience it now!
View More
MODELS Of HIGH VOLTAGE TESTER
- Easy to Operate
- Relay Protection
- HRC Fuse Protection
- Over Current Protection
- Zero Start Interlock Facility
- Short Circuit Protection
- High Voltage ‘ON’ Indication
- Capable to test up-to 150 KV
- Available in Manual / Motorized Mode
- KV Meter for High Voltage Measurement
- mA Meter for leakage current measurement
- Timer for testing Time Setting(Optional)
- Selector switch for leakage current Setting
- Variable Test Voltage Setting Knob
- Electrical Testing Laboratories
- Transformer Manufacturing and Repair Industries
- Motor Manufacturing and Repair Industries
- Generator Manufacturing and Repair Industries
- Pump Manufacturing and Repair Industries
- Cable Manufacturing and Repair Industries
- Engineering, Polytechnic and other Institutes
- Insulating Items Manufacturing Industries

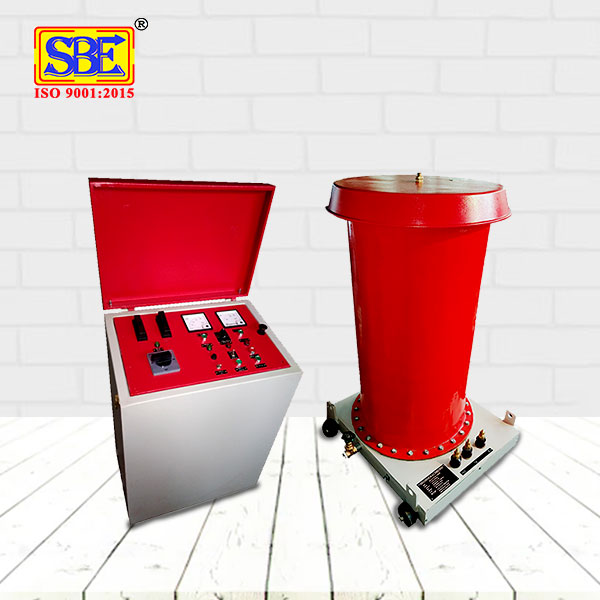

- Meters, Switches, Indicating Lamps, Push Button, Fuses etc. are fitted on the Front Panel.

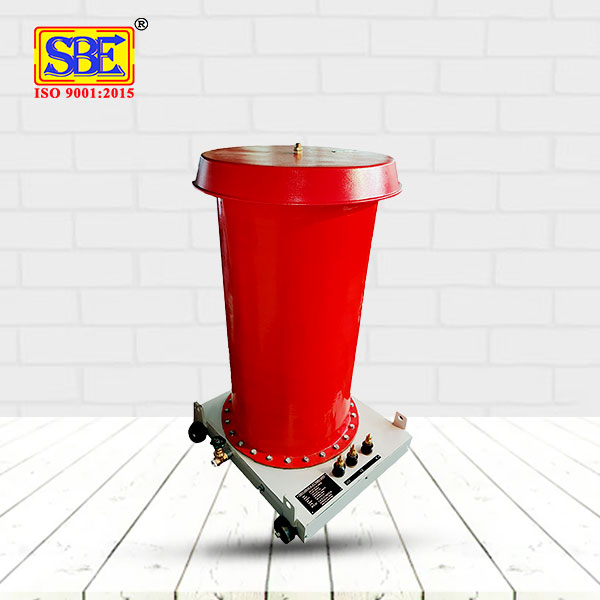

- One Single Phase Copper double wound H.V Step up Graded Insulation is mounted in the Second unit
- Contactor, Protection CT , wiring, One continuously variable Auto Transformer to vary the output voltage of suitable capacity are
mounted inside the cabinet.
| Input Voltage | 400 V, 2- Phase (of 3-Phase) 50 Hz, AC | ||
| Output Voltage | Up-to 150 KV | ||
| Leakage Current Capacity | 50/100/200/300/400/500/1000/2000/3000/4000/5000 mA, select- able by Rotary Switch in steps | ||
| Duty | Intermittent | ||
| Cooling | Oil Cooled | ||
- Operating Manual.
- Works Test Report. .
- Warranty Certificate.
- 5 Meters Input Mains Power Cord.

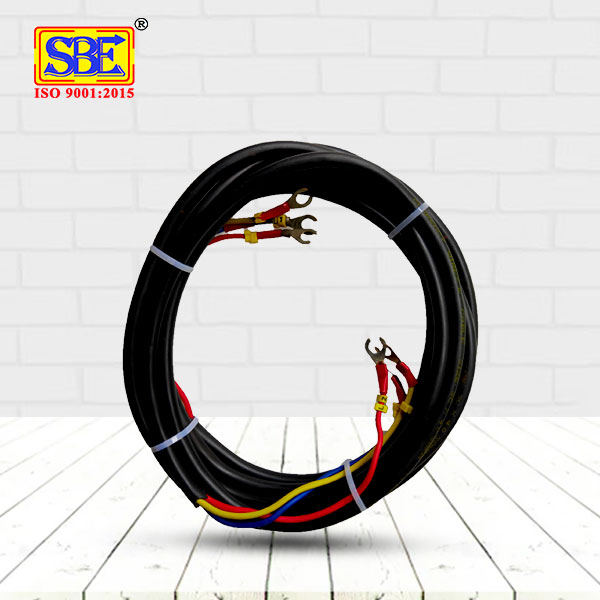

- 5 Meter Interconnecting Cable for Testing Panel and High Voltage Transformer.
- Spare : 2 Nos. Fuses, 2 Nos. Push Button, 2 Nos. Indication Lamps, 1 No. Micro Switch, 2 Nos. Battery Terminals.
