Measure the Device’s Current Easily
Measure the Current too High Extends
You can use the relay test kit for measuring the high amperes of current, like 50 Amp. There are few testing kits available in the market that are used for measuring and checking of semiconductor wafers or devices like semiconductor relays that are fulfilling the expectations of the testing of the devices. These are operational up to 50A and the relay test kit suppliers in India have produced this product to measure the current with ease in machines. The testing will work great for directional and non directional relays. You can handle the device for static, electromagnetic, and numerical distance testing too. No matter what your manufacturing unit is, the relay tester kit will help you determine what current is present in the electronic component and the need for it for repair purposes.
Call Now: +91 94774-23085
View More
PRODUCT GALLERY

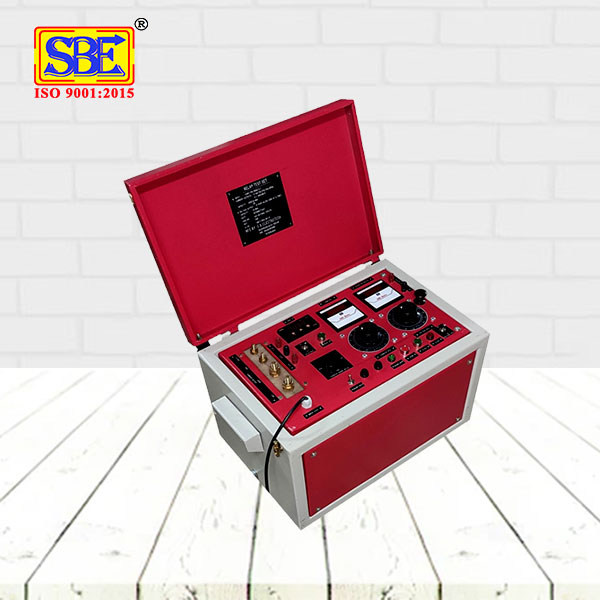

On and Off Sign Buttons for a Safe Use
The auto relay tester will ensure that you don’t face any consequences of forgetting the instrument to turn off. The machine will give you the on/off indication on the mcb. You will get a sign of the equipment by observing the indicator equipped on it. Whenever the device will be turned on or off you will know it.
You can even use these secondary injection relay test kit manufacturers in India production to have full control using the Push Button that shows you functions like ON/ OFF & Timer Reset. Use the machine for your mechanical or electronic components now.
View More

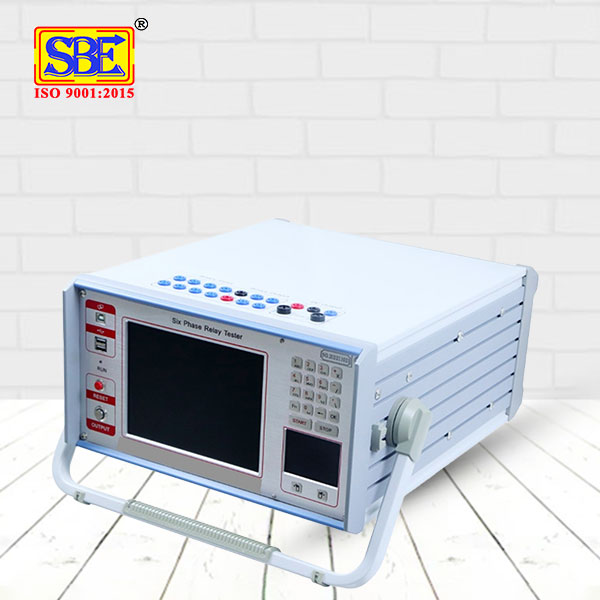

MODELS Of RELAY TEST KIT
| AC Current Source | |
| Amplitude Range | 6 X (0 ~30 A)/ Phase, Accuracy : 0.5% |
| 6 phase in parallel max output | 180 A |
| Phase current values allowed to work a long time | 10 A |
| Power | 300 VA / Phase |
| 6 Phase in parallel max output power | 900 VA |
| 6 Phase in parallel current max output allowable working time | 10 S |
| Frequency Range | 0 ~ 100 Hz, ,Accuracy : 0.001 Hz |
| Overtone Order | 2 ~20, Phase: 0 ~360°; Accuracy : 0.1° DC Current Source : 0.1° |
| DC Current Source | |
| Amplitude Range | 200 A / Phase |
| Power | 300 VA / Phase |
| Accuracy | 0.5 % |
| AC Voltage Source | |
| Amplitude Range | 6 X (0~125 V)/Phase; Accuracy : 0.5% |
| Line Voltage Set | 0~250 V |
| Phase Voltage / Line Voltage Output Power | 70 VA / 100 VA |
| Frequency Range | 0 ~1000 Hz, Accuracy : 0.001 Hz |
| Overtone Order | 2~20, Phase : 0~360°; Accuracy : 0.1° |
| DC Voltage Source | |
| Phase Voltage Output Range | 0 ~±150 V |
| Accuracy | 0.5% |
| Line Voltage Output Range | 0 ~±300 V |
| Phase Voltage / Line Voltage Output Power | 90 VA / 180 VA |
| SWITCH TERMINAL | |
| Switch Input Terminals | 8 Pairs |
| Empty Contacts | 1 ~ 20 mA, 24 V active output inside the device |
| Potential Flip | 0 ~6V DC is low level, 15 ~250 V DC is high level |
| Switch Output Terminals | 4 pairs, Empty Contact, Rupturing Capacity :110 V/2A, 220V/1A |
| TIME MEASUREMENT RANGE | |
| Range | 1 ms ~ 9999 s |
| Accuracy | 1 ms |
| DIMENSION & WEIGHT | |
| DIMENSION | 455 mm X 530 mm X 220 mm |
| WEIGHT | 32 KG |
| POWER | |
| AC | 220 V ±10% ; 50 Hz, 15 AMP. |
- 16 bit DAC output.
- Easy and fast to Operate.
- Friendly Man-machine Interface.
- Main Control Board is DSP + FPGA architecture.
- Generates High – density sine wave 2000 points each circle to fundamental wave.
- Includes the current working condition and all kinds of help information.
- High – performance embedded industrial computer and 8.4 inch resolution of 800 X 600 TFT true Color display which provides rich visual information.
- The Software with self calibrating function, which avoid to accuracy by adjusting relays after open the case, gently improve the stability of the accuracy.
- USB Directly connect with PC, without any adopter cable, easy to use.
- All technical indicators fully meet the International standards. Technical condition of the relay computer test device.
- The windows system comes with the restore function ; avoid system crashes caused due to illegal shutdown or malfunction etc.
- Equipped with Ultra-thin industrial keyboard and optical mouse, complete a variety of operations using keyboard or mouse the same as ordinary PC.
- Using high – fidelity linear amplifier. Both to ensure the accuracy of a low current, but also guarantee the stability of the high current.
- Can be connected to a laptop computer (Optional). Laptop computers and industrial machines use the same software, no-need tore-learn the method of operation.
- With a separate DC auxiliary voltage source, Output voltage 110 V (1A), 220 V (0.6 A), provides relays or protective devices which Require DC Power.
- The software with self-calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve The stability of the accuracy.
- Meets all the requirement of field test. This tester with standard 6 Phase voltage, and 6 Phase Current Output, voltage 125 V/Phase, Current 30 A / Phase, 6 Phase in parallel can up to 180 A. Digital Signal Processor Microcomputer. Not only test the traditional relays and protectors, but also test the modern microcomputer relays, special for transformer differential protection and transfer equipment.
