Protected & Easy to Use
Makes the Current Testing Easy
The product can simply ease up the testing part of relays that is tough to find out without a device’s support. You can use the product of three-phase relay test kit suppliers in India to have a clear measurement of the current for up to 50 Ampere. The test kit will help you understand the current position of relays. The 3 phase relay test set is all you need to do for the substation testing and more.
Call Now: +91 94774-23085
View More
PRODUCT GALLERY
Control the Current with Three Regulators
We equipped the device with three controlling buttons that will help you control the current flow as per the energy you are supplying. It’s equally confusing to maintain the voltage for a desired current output in a device and the product does it with comfort. With the regulators, there will be hardly any chance for you to make a mistake in the supply of current in a device or a cable with errors.
The three-phase relay test set is thus a helpful device that will support you in testing the flow of current in your manufacturing unit’s devices. Try the three-phase relay test kit manufacturers in India to have this product.
View More
MODELS Of THREE PHASE RELAY TEST KIT
- 1.5% Accuracy
- Compact and rugged
- Quick and Easy to operate
- Capacity : 300 VA Per Phase
- Good Locking, Sturdy Cabinet
- Test Current is Up-to 50 Ampere
- Excellent Weight / Performance Ratio

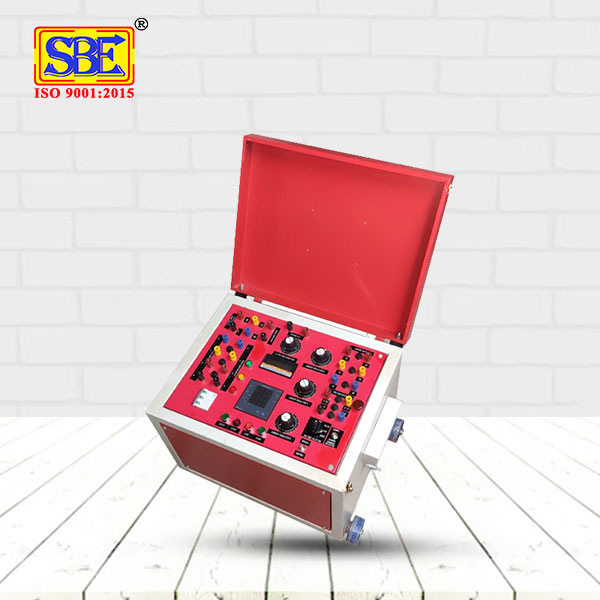

- Three Phase Relay cum Energy Meter Test Set to test, Various types of Relay and Energy Meter
- Mains ON/OFF MCB
- Mains ON & START Indication
- Input Terminals R,Y,B & N
- Three Nos. Digital Ammeter of 1.5% Accuracy
- Three Phase Current Output Terminals
- Three Nos. Current Regulator is provided
- 1A/5A/25A Selector Switch, 50A Terminal
- By pass / Control Selector Switch
- Fuse Protection for all O/P Voltage and O/P Current
- 0-250 V AC & DC Voltage Source Terminal
- Push Button Control Output ON/ OFF & Timer Reset
- One No. AC & One No. DC Voltage Regulator is provided
- Mains Power Cord
- Operating Manual
- Warranty Certificate
- Spare Fuse
- Works Test Report
- Schematic Circuit Diagram
| Input | 415 V, 3-Phase – 4 Wire, 50 Hz, AC | |
| Three Phase Current Output |
Current Rating (In Amp.) | Open Circuit Voltage (In Volt) |
| 0-1A | 6V/50V | |
| 0-5A | 6V/50V | |
| 0 – 25 A | 6V | |
| 0 – 50 A | 6V | |
| Maximum Capacity | 300 VA Max. | |
| Duty | 5 Minutes. | |
| Voltage Output | AC | DC |
| Voltage | 0 – 250V | 0 – 250V |
| Capacity | 250 VA | 250 VA |
| Duty | 5 Minutes | |
| Cooling | Air Natural Cooled | |
| Digital Time Interval Meter | ||
| Range | 0 – 999999 Sec. Auto Range | |
| Resolution | 1 mS | |
| Weight & Dimension | Weight :- 70 KG Approx. | Dimension :- 650mm(L)x 450mm(W)x 450mm(H) |
| Test Lead | 2 Nos. 25 sqmm 5 Meter Flexible Copper Cables | |
| The timer will stop on getting the signal from the relay under test. When the timer stops, the current and voltage output are de–energized. Separate pair of test terminals is provided for Relay trip contact.6 Digit, 7 Segment Display Multi-range: A) 0 – 999999 seconds B) 0 – 9999.99 seconds C) 0 – 999.999 seconds D) 0 – 99Hr. 59 Min. 59Sec. E) 0 – 9999Hr. 59Min. F) 0 – 999999Hr G) 0 – 9999.99ms (millisecond) | ||
| # Digital Type Multi Function Meter will be Provided to show Three Phase Current & Voltage. It can show 3 Phase Voltage, 3 Phase Current, KW, KWH, KVA, PF & HZ | ||
