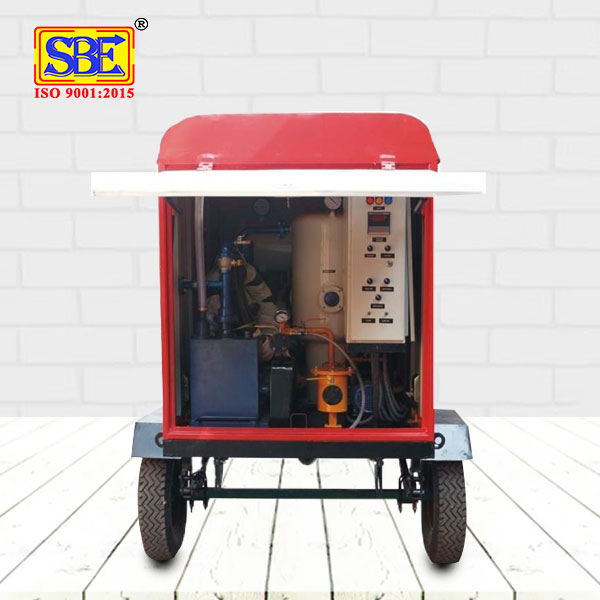

12000 LPH High Vacuum Double Stage Transformer Oil Purification Machine
Keeps your Transformer New Like
The machine made by the top transformer oil purification machine manufacturers in India helps in keeping the pollutants away from the chamber that stores the oil. You can easily take away the impurities from it once you filter the contaminants present in oil using the filter cartridge installed in the purification apparatus. The transformer oil purification machine will work strongly for both the national and international markets. The tool will have a capacity of up to 12000 LPH and can improve the dielectric strength of the transformer oil from 25 kv to 70kv.
Download Catalogue
View More
PRODUCT GALLERY
Understand the Future of Oil
The device created by transformer oil purification suppliers in India can give you filtered oil for future use. Apart from the removal of the impurities, you can also remove the moistures from Oil. When the oil is not great, you can replace it with the help of technicians or else use the same for the future. Thus, the process will save you a lot of funds on your expenditures even after separating the pollutants of the oil.
- Imported filter cartridges,
- Available in filter cartridge models.
- Available in capacity Up-to 12000 LPH.
- Ball valves with SS balls and Teflon seating.
- Rugged construction, resulting in long years of service.
- Major pipe connections are made of wire braided hoses.
- Centralized control panel (Fuse less panel using MCCBs, MCBs).
- Powder coated outer panels and internal parts spray painted with PU Paint.
- Temperature gauge, vacuum gauge, compound gauge, Safety relief valves.
- Mounting options like mobile(with Jeep Wheel), semi-mobile (with castor wheel) and skid.
- Improves dielectric strength of the Transformer oil from 25KV to 70 KV& above In 3 to 4 Passes.
| Parameters | Unit | TOFMD 1200 |
TOFMD 1800 |
TOFMD 2400 |
TOFMD 3000 |
TOFMD 4500 |
TOFMD 5000 |
TOFMD 6000 |
TOFMD 12000 |
| Flow Rate | L/H | 1200 | 1800 | 2400 | 3000 | 4500 | 5000 | 6000 | 12000 |
| Inlet Pump | L/M | 20 | 30 | 40 | 50 | 80 | 80 | 100 | 200 |
| Outlet Pump | L/M | 20 | 30 | 40 | 50 | 80 | 80 | 100 | 200 |
| Heating Power | KW | 12 | 30 | 48 | 72 | 96 | 108 | 120 | 144 |
| Vacuum Pump 1st Stage |
L/M | 300 | 400 | 600 | 600 | 800 | 1000 | 1200 | 2000 |
| Booster Pump 2nd Stage |
m³/Hr | – | – | 100 | 200 | 250 | 300 | 400 | 600 |
| Inlet/Outlet | mm | Φ19 | Φ19 | Φ25 | φ25 | Φ38 | Φ50 | Φ50 | Φ62 |
| Magnetic Strainer |
Micron | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Secondary Filter |
Micron | 3 No.10µ 3 No. 1µ |
3 No.10µ 3 No. 1µ |
4 No.10µ 4 No. 1µ |
4 No.10µ 4 No. 1µ |
6 No.10µ 6 No. 1µ |
7 No.10µ 7 No. 1µ |
8 No.10µ 8 No. |
1µ 10 No.10µ |
| Back Filter | – | – | – | 1 No. | 1 No. | 1 No. | 1 No. | 1 No. | 1 No. |
| Operation Temperature |
°C | 40 ~ 70 (65°C is Best) | – | ||||||
| Power Supply | – | 390-450 VAC, 3 Phase, 50 Hz | – | ||||||
| Ambient Temperature |
– | -25 ～ 55 | – | ||||||
| Weight | Kg | 500 | 700 | 900 | 1000 | 1200 | 1300 | 1400 | 2000 |
| Inlet/Outlet Hose Pipe |
Mtr | 10 Mtr Each |
10 Mtr Each |
10 Mtr Each |
10 Mtr Each |
10 Mtr Each |
10 Mtr Each |
10 Mtr Each |
10 Mtr Each |
| Parameter | Used Oil | After Treatment |
| Moisture (Water Content) | ≥20 ppm | ≤ 5 PPM |
| Gas Content | 10% | ≤0.1% (Vol) |
| Particle size (Filtration Level) | 50-100 ppm | ≤ 1 micron |
| Breakdown Voltage (Dielectric) | 25 kV | ≥70 KV |
When this machine start working and vacuum degree is up to the set value, the used oil will be sucked into the primary filter & secondary filter under the pressure difference, the primary filter & secondary filter will remove the big size impurities/ particles, then the oil which just contains the tiny particles is heated by the heaters. Then the heated oil enter into the vacuum separator, through the function of vacuum pressure and degassing system, the moisture content in the oil, which is vapoured & separated from the oil quickly, is either discharged under the process of the vacuum system or refrigerated to liquid water into water receiver, meanwhile de- gasification work is completed. The last procedure is that the fine filter removes the tiny impurities completely. Finally, clean oil goes out through the oil outlet.
